Motor Pump Coupling Guard

Pump coupling Guard prevent access to exposed pinch-points around couplings and rotating shaft applications. This guard is designed for the 360 degrees guarding concept. These guards are ANSI/OSHA compliant.

Main Benefits of coupling guard

Easy to install

  • Self–supporting, adjustable design
  • Custom-fit for each application
  • As a result, no welding and cutting required
  • Adjustable mounting legs
  • Comply to 360 degree guarding concept for machine safety

Built to Last

  • Heavy duty steel construction
  • Available in SS 304 and SS 316 for corrosive environment
  • Increased durability due to powder coating

Optional split coupling design

  • Ideal for large coupling
  • In addition, our team will recommend which coupling guard is right for you.

motor pump coupling guard


Handles: Ergonomically friendly handles for easy removal of the guard

Wedge Clamps: Eliminate the repetitive motion of tightening and loosening fasteners

Service/Inspection door: Eliminate the need to remove the entire guard to access a specific area of the equipment

Laser Cut identification: Easily reference equipment when performing maintenance tasks (optional). We have similar product for belt drive guard also

For custom requirement download below form and send us

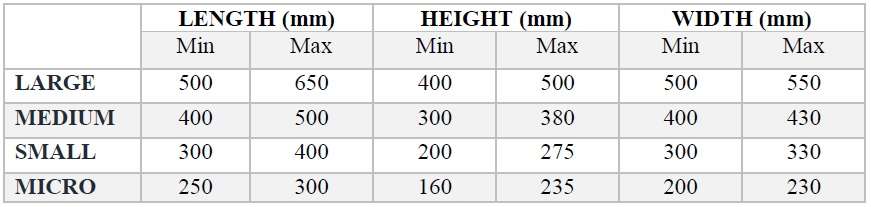

This Coupling guard is available in standard 4 sizes, which can accommodate all the needs from 0.5kW to 200 kW pump sizes.
Pump coupling Guard
pump coupling guard
Pump coupling Guard
Pump coupling Guard
pump coupling guard
pump coupling guard
